Monitoring Features Temperature and Module Supply Monitoring for 400G QSFP-DD Optical Transceiver in Data Centers HPC

Name: Monitoring Features Temperature and Module Supply Monitoring for 400G QSFPDD Optical Transceiver in Data Centers HPC
Brand: Starsurge
Price: 1 USD

China Monitoring Features Temperature and Module Supply Monitoring for 400G QSFP-DD Optical Transceiver in Data Centers HPC wholesale

Model Number : CC-QSS110M-SD

Place of Origin : China

Brand Name : Starsurge

Price : Negotiable

Certification : RoHS CE FCC UL

MOQ : 1 pc

Payment Terms : Western Union, T/T, MoneyGram

Supply Ability : 10000pcs/month

Delivery Time : 2-7days

Packaging Details : carton

Type : Optical Transceiver

Use : High-Performance Computing Interconnect

Warranty Time : 1 year

Network : High-Speed Data Transmission Network

Port : 8 Independent Parallel Optical Channels

Power Source : CML Compatible Electrical I/O

Connector Type : MPO-16 APC Optical Receptacle

Power - Minimum Receivable : <10W

Operating Temperature : Commercial: 0°C to 70°C

Transmission Distance : Up to 100m on OM4 Multi-mode Fiber

Data Rate : Up to 26.56GBaud per Channel

Compliance : QSFP-DD MSA CMIS 4.0 RoHS II

Optical Technology : 850nm VCSEL/PD Array Technology

Fiber Type : OM4 Multi-mode Fiber

Monitoring Features : Temperature and Module Supply Monitoring

Contact Now

Monitoring Features Temperature and Module Supply Monitoring for 400G QSFP-DD Optical Transceiver in Data Centers HPC

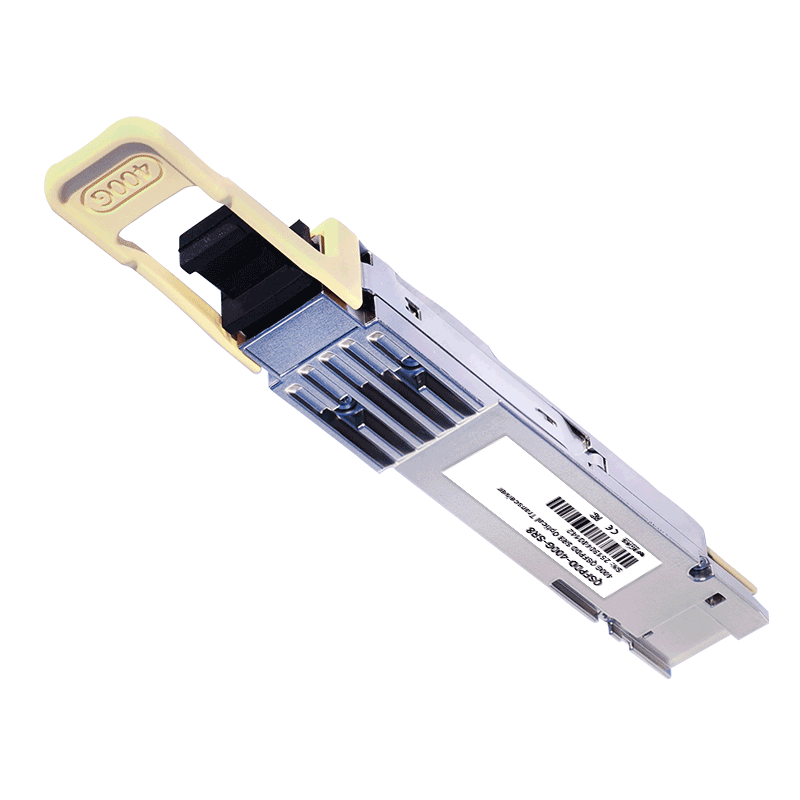

400G QSFP-DD SR8 Optical Transceiver CC-QSS110M-SD

CC-QSS110M-SD is a QSFP-DD Optical transceiver for 8 x 26.56GBaud optical links. It is compliant with the QSFP-DD MSA specifications. It operates at 26.56GBaud up to 100m over OM4 Multi-mode fiber.

Applications

 High performance computing interconnect

 Data center

Features

 8 independent parallel optical channels

 Each channel data rate up to 26.56GBaud with CDR

 Hot Pluggable

 Up to 100m link on OM4 Multi-mode

 850nm VCSEL/PD Array Technology

 CML Compatible electrical I/O

 QSFP-DD MSA Compliance

 Optical connectivity via industry standard MPO/ MTP terminated fiber ribbon

 MPO-16 APC Optical Receptacle Type

 CMIS 4.0 Compliance

 Monitors for VCSEL bias, transmitted, received power , module

 temperature, and module supply

 Case Operating Temperature: Commercial: 0 to 70ºC

 RoHS II Compliance

Our company is a professional network solution supplier. Based on the information industry, it integrates the research and development of computer network technology and system integration, and provides users with a full range of technical services such as network platforms, system platforms, and application platforms. Show users the solutions of various new network systems and application systems. Our clients cover industries such as government, finance, telecommunications, colleges, transportation,enterprises, hospitals, securities, and public services. The main products include Mellanox, Ruckus,Aruba,Extreme, etc. with favorable prices, rich product catalogs, and perfect after-sales services, the business continues to expand, and customers are all over the United States, South Africa, Europe, East Asia, Russia, and Australia And South America and other countries in the world, has accumulated rich experience in export and customer service. Always to the concept of"quality-oriented, service-oriented", and provide you with cost-effective products and solutions with high-quality professional standards, dedicated attitude and efficient service system. We are committed to building an ecological platform to contribute to the development of information technology!

Q1.What can you buy from us?

Mellanox, Aruba, Starsurge, Rukus, Extreme brand products, including switches, network cards, cables, modules,AccessPoint, etc.

Q2.How about the delivery date?

It usually takes 3-5 working days. For specific models, please contact us to check thestock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.

Q3.What's your warranty terms?

We supply 12 months warranty time.

Q4.How about the Shipping Method?

We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.

Q5.Can I get some samples?

Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.

Q6.What are your core strengths?

First-hand supply, Original and new products with the favorable price and perfect after-sales service

Q7.Price questions

The inventory turnover is fast, and the cost of each batch of goods fluctuates according to the market price. The final price is subject to the sales quotation. Please understand.

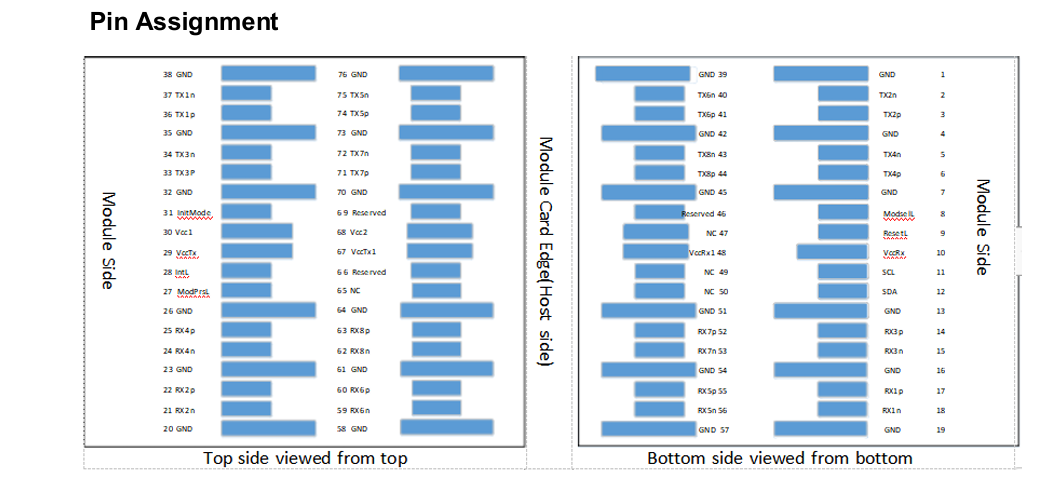

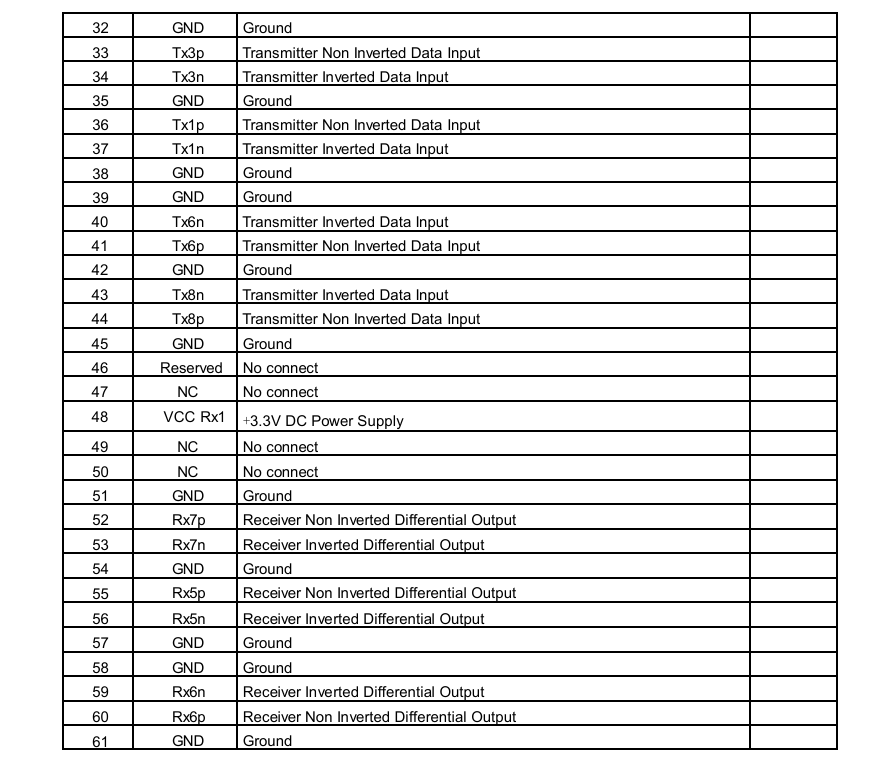

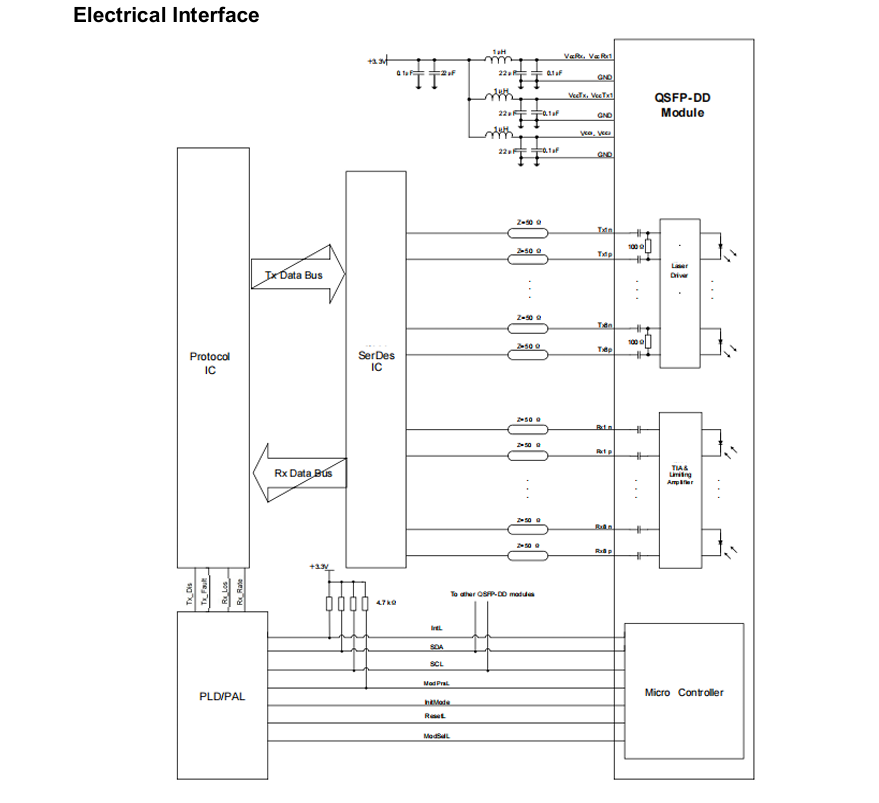

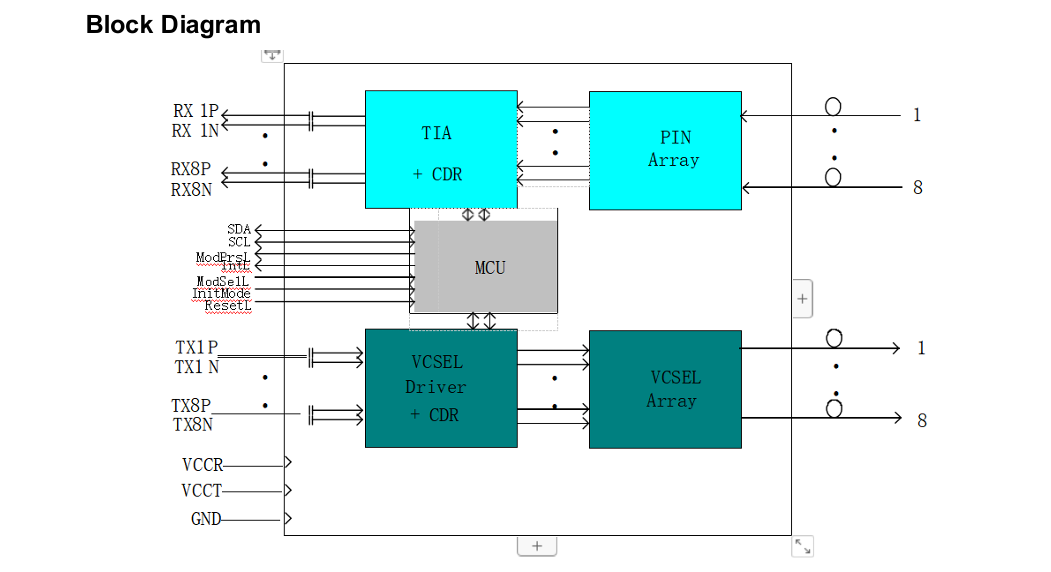

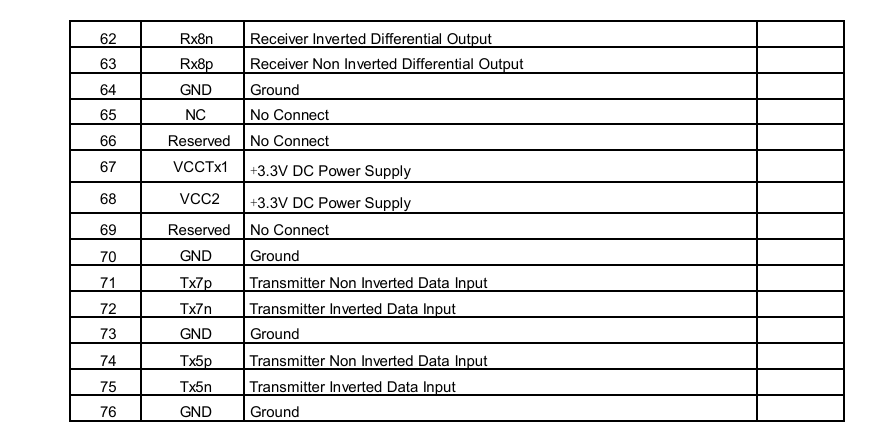

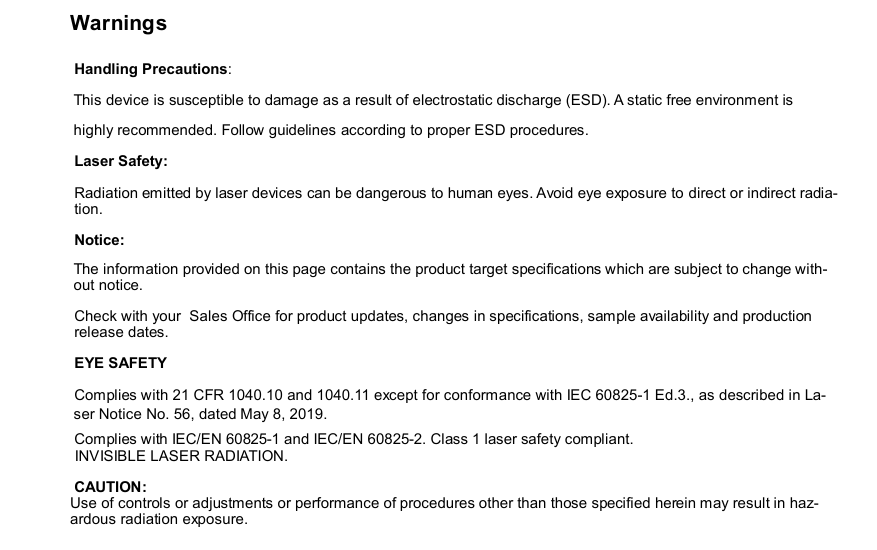

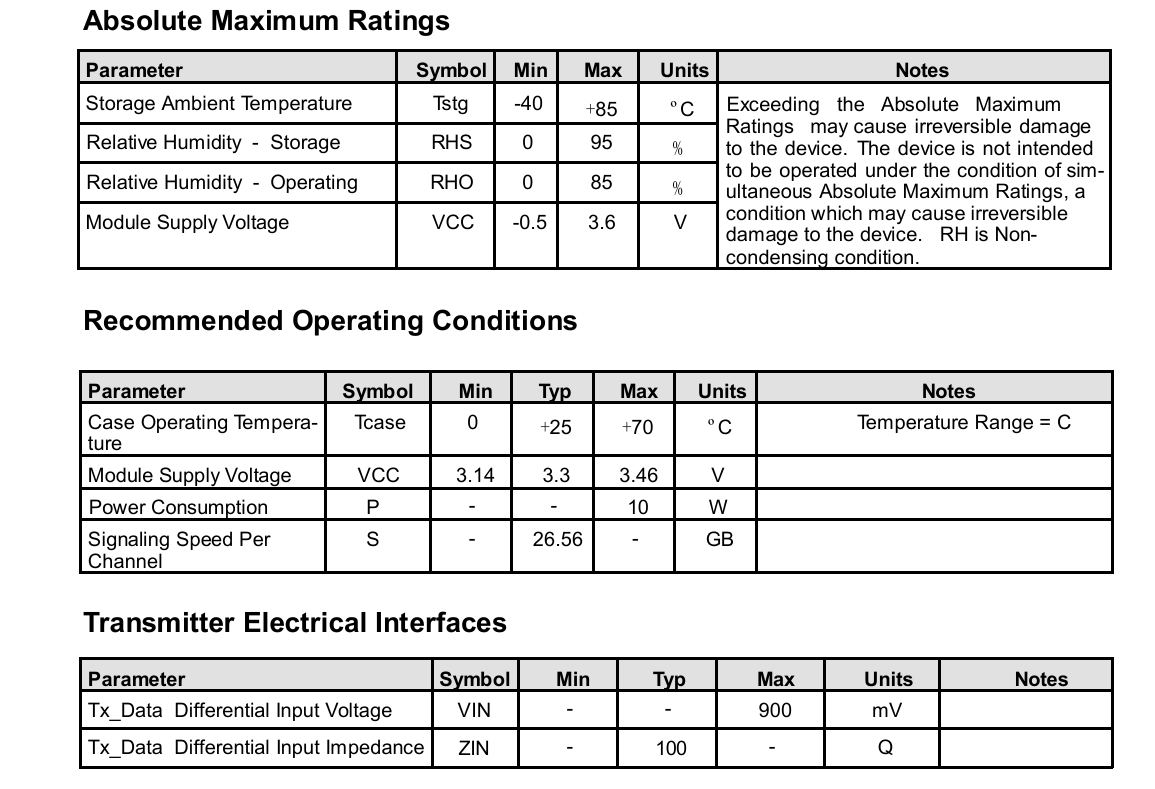

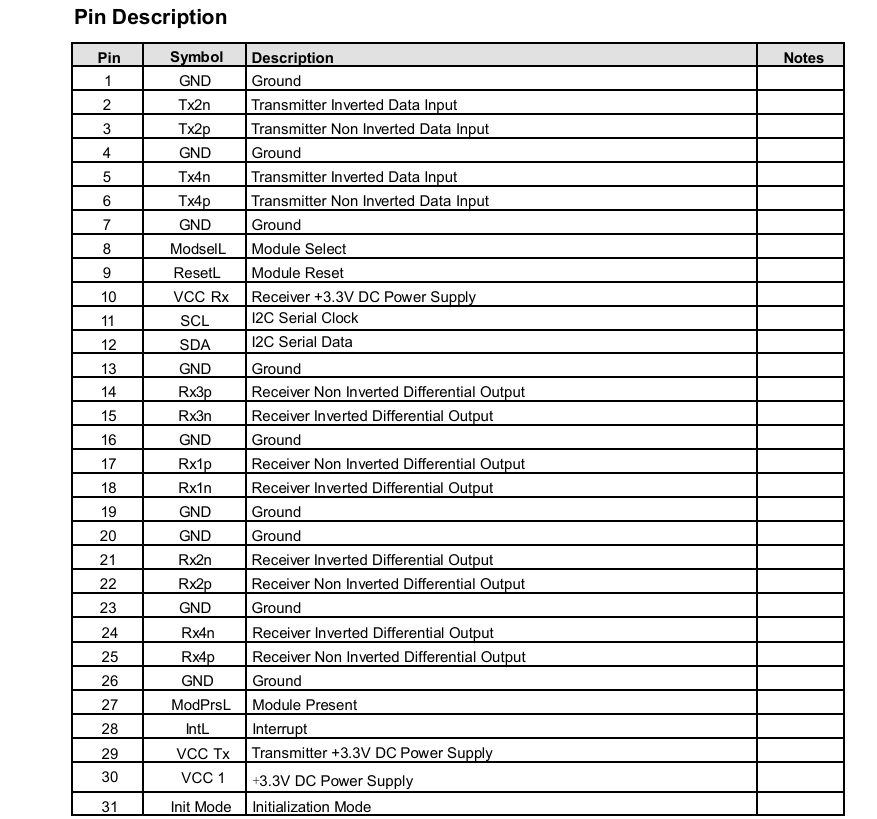

Monitoring Features Temperature and Module Supply Monitoring for 400G QSFP-DD Optical Transceiver in Data Centers HPC Images
