Bandwidth 400G Ethernet Network OSFP SR4 Multimode Fiber Transceiver Module with Hot-Plug Digital Diagnostic Functions

Name: Bandwidth 400G Ethernet Network OSFP SR4 Multimode Fiber Transceiver Module with HotPlug Digital Diagnostic Functions
Brand: Starsurge
Price: 1 USD

China Bandwidth 400G Ethernet Network OSFP SR4 Multimode Fiber Transceiver Module with Hot-Plug Digital Diagnostic Functions wholesale

Model Number : CC-OSFP04SR4-12D

Place of Origin : China

Brand Name : Starsurge

Price : Negotiable

Certification : RoHS CE FCC UL

MOQ : 1 pc

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000pcs/month

Delivery Time : 2-7days

Packaging Details : carton

Type : Optical Transceiver

Use : High-Performance Computing Interconnect

Warranty Time : 1 year

Network : 400G Ethernet, InfiniBand

Port : OSFP Interface

Power Source : Max Power Consumption 8.5W (4 channels), 6.5W (2 c

Connector Type : MPO-12 APC

Transmission Distance : Up to 70m reach on OM3, Up to 100m reach on OM4

Operating Temperature : 0°C to 70°C

Compliance Standards : OSFP MSA, RoHS Compliant, CMIS Rev 5.0 and above

Supported : Hot-pluggable

Modulation : 4-channels of 100G-PAM4 electrical and optical modulation

Special Features : Can be used as a 200Gb/s NDR200 transceiver with a 2-fiber splitter

Contact Now

Bandwidth 400G Ethernet Network OSFP SR4 Multimode Fiber Transceiver Module with Hot-Plug Digital Diagnostic Functions

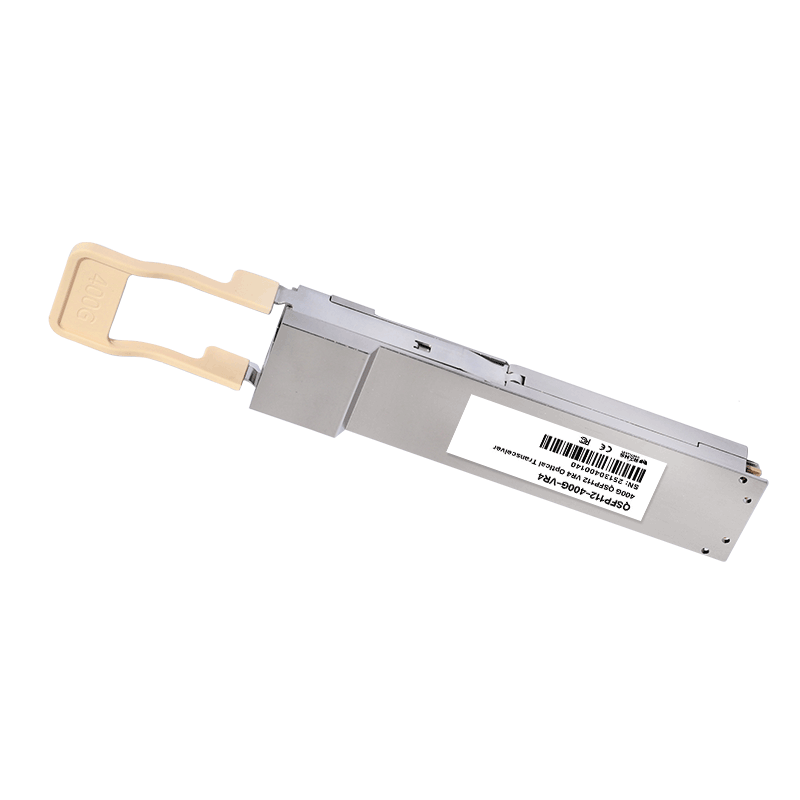

400G OSFPSR4Transceiver CC-OSFP04SR4-12D

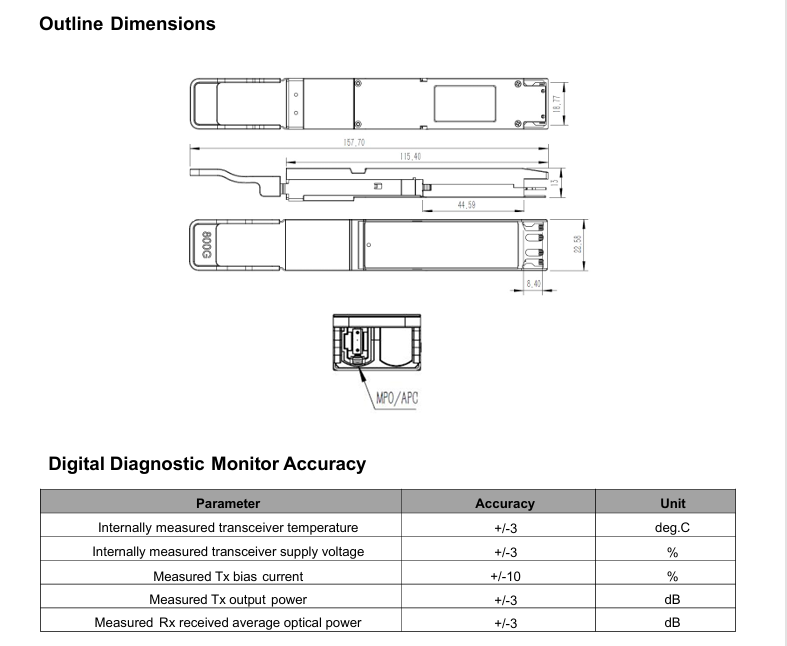

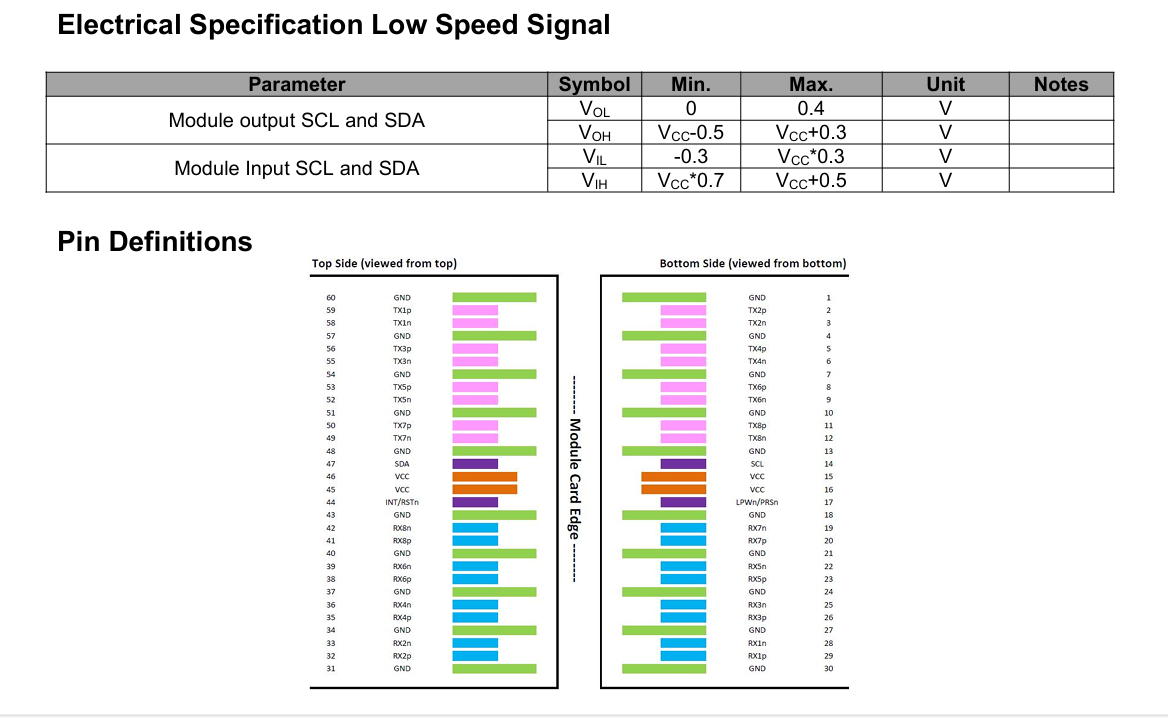

CC-OSFP04SR4-12D OSFP transceiver modules are designed for use in 400 Gigabit Ethernet or InfiniBand links up to 100m multi-mode fiber. They are compliant with the OSFP MSA, IEEE P802.3db/D3.0 and IEEE P802.3ck . Digital diagnostic functions are available via
the I2C interface, as specified by the OSFP MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

Applications

 InfiniBand NDR

 400GSR4applications with FEC

 4x100GbEbreakoutapplication

Features

 Hot-pluggable OSFP400G SR4 multimode transceiver

 Compliant with OSFP RHS

 Compliant with CMIS Rev 5.0and above revision

4-channels of 100G-PAM4 electrical and optical modulation

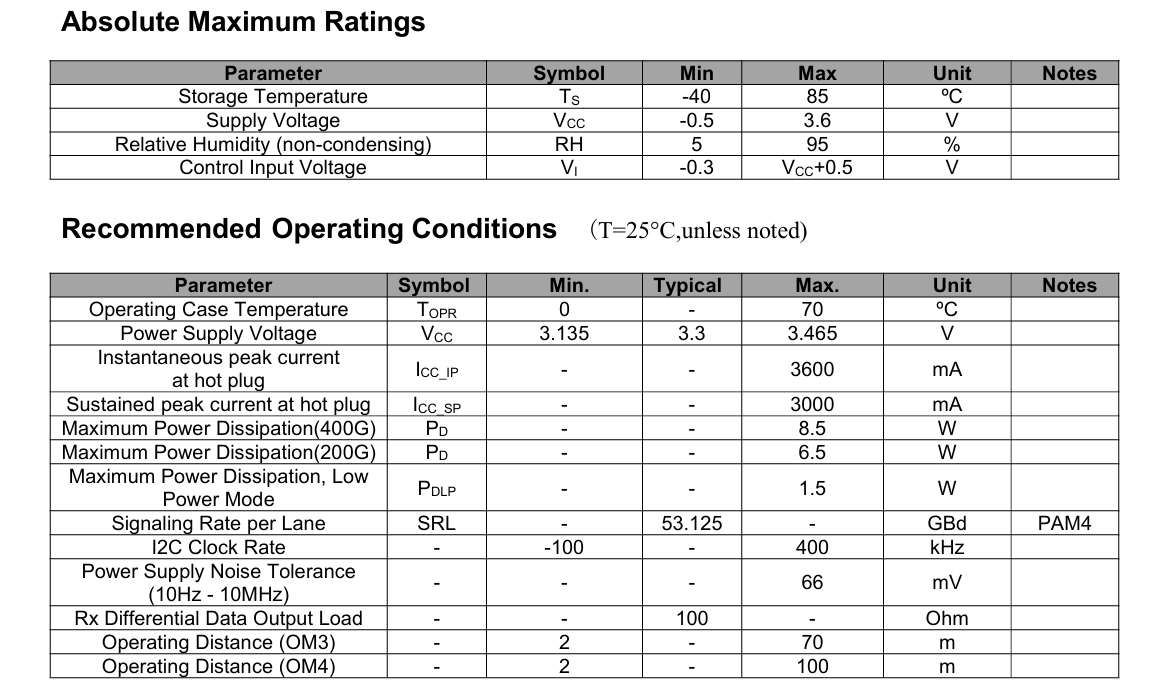

 Maximumpowerconsumption 8.5W with 4 channels and 6.5W with 2 channels
 Single MPO-12 APCreceptacles

 Upto70mreachonOM3and100mreach on OM4

 Operates as a200Gb/s NDR200 transceiver with 2-fiber splitter ends

 Caseoperating temperature 0°C to 70°C

Our company is a professional network solution supplier. Based on the information industry, it integrates the research and development of computer network technology and system integration, and provides users with a full range of technical services such as network platforms, system platforms, and application platforms. Show users the solutions of various new network systems and application systems. Our clients cover industries such as government, finance, telecommunications, colleges, transportation,enterprises, hospitals, securities, and public services. The main products include Mellanox, Ruckus,Aruba,Extreme, etc. with favorable prices, rich product catalogs, and perfect after-sales services, the business continues to expand, and customers are all over the United States, South Africa, Europe, East Asia, Russia, and Australia And South America and other countries in the world, has accumulated rich experience in export and customer service. Always to the concept of"quality-oriented, service-oriented", and provide you with cost-effective products and solutions with high-quality professional standards, dedicated attitude and efficient service system. We are committed to building an ecological platform to contribute to the development of information technology!

Q1.What can you buy from us?

Mellanox, Aruba, Starsurge, Rukus, Extreme brand products, including switches, network cards, cables, modules,AccessPoint, etc.

Q2.How about the delivery date?

It usually takes 3-5 working days. For specific models, please contact us to check thestock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.

Q3.What's your warranty terms?

We supply 12 months warranty time.

Q4.How about the Shipping Method?

We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.

Q5.Can I get some samples?

Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.

Q6.What are your core strengths?

First-hand supply, Original and new products with the favorable price and perfect after-sales service

Q7.Price questions

The inventory turnover is fast, and the cost of each batch of goods fluctuates according to the market price. The final price is subject to the sales quotation. Please understand.
